The TRX Project: First modification. The clip ons.

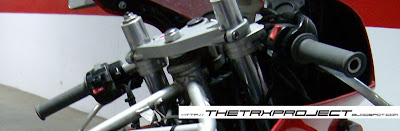

The first modification in my TRX was replace the clip ons. The stock clip on was mounted on top of the forks, and I wanted to mount it under the forks , because I feel them too high, but I can´t mount the same handlebars because they have only one M6x1 clamp bolt. I think that to be mounted under this bolt not was enough and I search a new pair of clip ons with better clamping (I don´t want to imagine if in a hard braking these bolts were get loosed, I taste other times the road with my bones and I prefer don´t do it again).
The original clip ons hide a little surprise for my, one of them is WELDED & a little bit bented. Then is when I´m sure that I MUST to replace I´t . In my search of a new ones I find the page of a german manufacturer of a CNC aluminion alloy bike parts like clip ons , foot rest, crash pads, clips on,etc... . LSL Motorradtechnik is this manufacturer, they webpage now is only availiable in german but english is comming soon. I look for the spanish distributor of LSL and this was dream machine , I´m a lucky guy this company is located in Chiva, a town near Valencia & and I live in L´Eliana another town near too, I called dream machine and I talk with them & I bougth this throught neu Neumoto a bike shop on Valencia(The handlebars I bought are all in aluminium color) .

They have a high quality CNC machined work in 2214 T6 Alluminium.The torque settings of all of the clamping bolts in the LSL handlebars , all M6-screws, you have to tighten the screws with 10 Nm and to repeat the tightening alternanting with both screws two times.In the Yamaha clip ons the torque settings are : handlebar retain bolts 23 Nm & the holder clamp bolt is 17 NM. The fork clamp bolts, yo must loose these to slide the fork bars to replace the clip ons , you must tight to 23 Nm.
To take advantage of the situation I replace the Oxford heated grips from the last owner for a new Renthal grips. Oxford grip don´t like me because I think never really need it and are more big (in diameter) .



The old Oxford heated grips.











The new , and better, Renthal grips.
